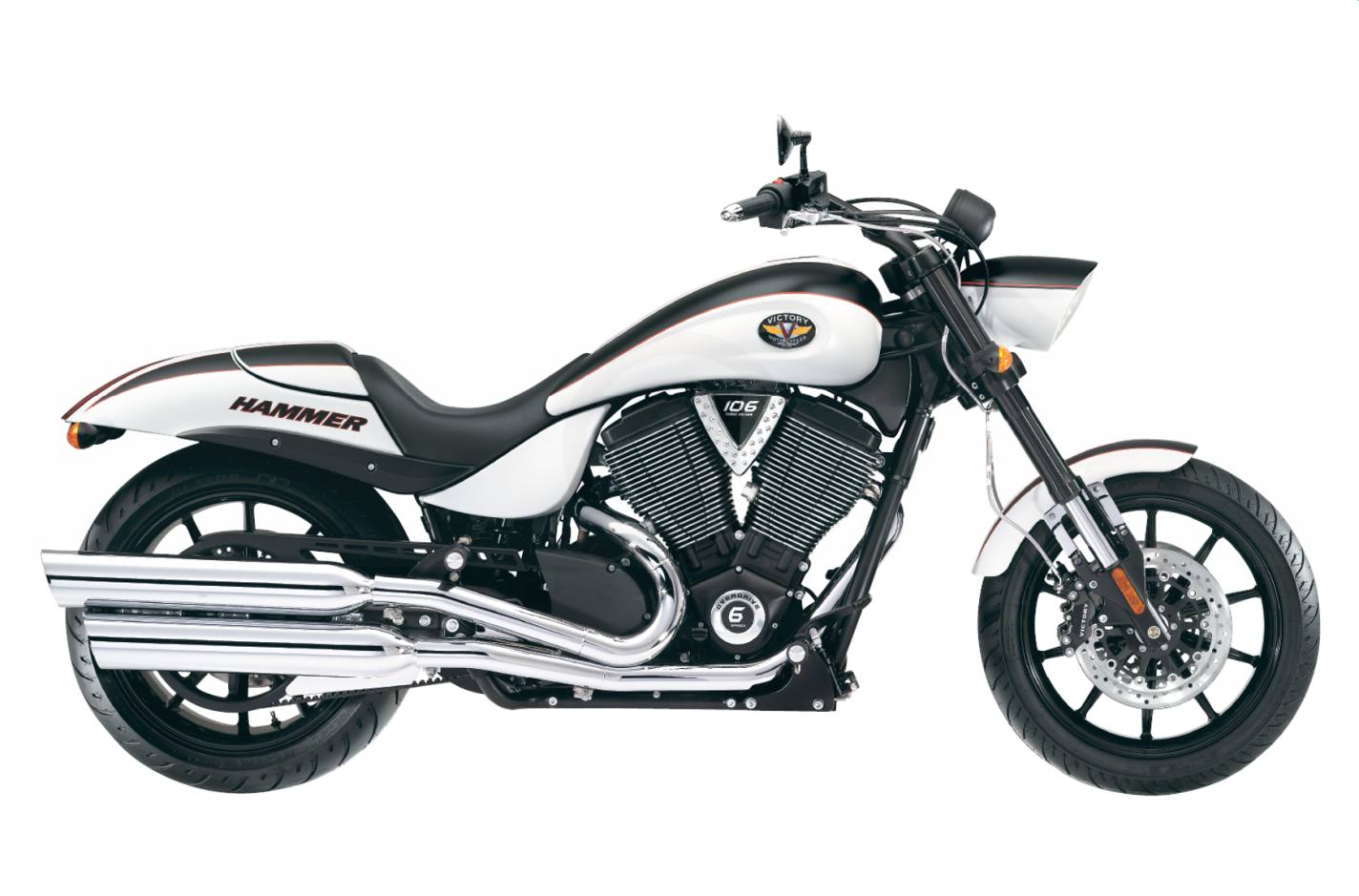

2010 Victory Motorcycles Hammer® S
Request a Quote Financing Calculator Request a Brochure Financing Form

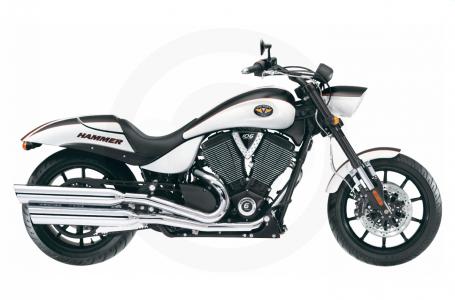

Click here to view full image.
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

Modern American muscle with custom paint and blacked-out wheels inspires the 2010 Victory Hammer® S Motorcycle. Are you feeling the need? Then try this: a wide 250mm rear tire, 97 horsepower, 113 foot-pounds of torque, inverted front forks, dual-disk front brakes & a speedo & tach — standard. These performance features make such a strong statement that fully expresses the Hammer® S.


For cruising on Main Street or cruising across state lines, the Hammer® S provides a fantastic experience. Find out more about its features, specifications, pricing, comparisons, reviews, videos, images, brochures, downloads, and locate your nearest dealer that has the Victory Hammer® S Motorcycle.

  • 250MM Rear Tire - Roll smooth & roll in style on this 250mm rear tire. It was developed jointly by Victory engineers and Dunlop tire technicians to provide excellent performance and a great ride.
  • Super-Bright Multi-LED Taillight - As leader of the pack, a Hammer needs a taillight that's easy to follow. This light is exceptionally bright & super-stylish with its smart design & flush mounting.
  • Chopped Rear Fender - The stylish Hammer rear fender holds a flush-mounted taillight and the fender is chopped in a sport-inspired manner to show off the impressive 250mm rear tire.
  • Removable Passenger-Seat Cowl - Where's the passenger seat? Right under the stylish, removable cowl that complements the bike's styling and keeps the passenger pad under wraps until it's time for 2-up riding.
  • 106-Cubic-Inch Freedom V-Twin - This 106-ci/1731cc Freedom V-Twin has Stage 2 cams & delivers a road-ruling 97 horsepower 7 113 ft-lb. torque. Electronic Fuel Injection keeps it smooth & efficient so you enjoy pure power.
  • Speedometer and Tachometer - A chrome bracket holds the speedo and tach side-by-side for easy to read, heads-up viewing of the bike's operating data.
  • Custom Headlight - For a total integration of the bike's custom styling, the headlight bucket features elements of the bike's paint scheme so the color treatment extends the full length of the bike.
  • Blacked-Out Custom Detail - With its distinctive Hammer S Styling, paint & custom wheels, this bike doesn't need a lot of chrome, so many components are blacked-out, putting the painted bodywork in the spotlight.
  • Inverted Front Fork - The inverted cartridge telescopic fork has 5.1" (130mm) of bump-swallowing travel and provides a Hammer rider with smooth, easy steering, in town and on the open road.
  • 18-Inch Front Wheel - This stylish 10-inch wheel has a tire that puts some real meat on the road. It holds the road well, inspiring confidence and providing easy, natural handling.
  • Premium Dual-Disk Brakes - Enjoy consistently outstanding braking with these dual 300mm floating rotors equipped with 4-piston calipers. They provide sure stopping that inspires confident riding.
  • Custom-Painted Wheels - The "X-Factor" custom wheels are lightweight & engineered for a premium performance. The Suede Black/White model has black wheels, while the Boardwalk Blue model has blue wheels.
  • 6-Speed Overdrive Transmission - There's smooth shifting through the gears, and in 6th - which is a true overdrive - the RPMs drop for smooth, efficient highway cruising. Plus, there's still power for passing without downshifting.
Engine
  • Engine Type: 4-stroke 50° V-Twin
  • Cooling Type: Air / Oil
  • Displacement: 106 ci / 1,731 cc
  • Bore x Stroke: 101 x 108 mm
  • Compression Ratio: 9.4:1
  • Valve Train: Single overhead camshafts with 4 valves per cylinder, self-adjusting cam chains, hydraulic lifters
  • Fuel System: Electronic Fuel Injection with dual 45mm throttle body
  • Fuel Capacity: 4.5 gal / 17.0 ltr
  • Exhaust: Staggered slash-cut dual exhaust with crossover
  • Oil Capacity: 5.0 qts / 4.75 ltr
  • Charging System: 38 amps max output
  • Battery: 12 volts / 18 amp hours
  • Primary Drive: Gear drive with torque compensator
  • Clutch: Wet, multi-plate
  • Transmission: 6-speed overdrive constant mesh
  • Final Drive: Carbon Fiber Reinforced Belt
Chassis Dimensions
  • Length: 93.1 in / 2,366 mm
  • Wheelbase: 65.7 in / 1, 669 mm
  • Seat Height: 26.5 in / 673 mm
  • Ground Clearance: 5.8 in / 148 mm
  • Rake/Trail: 32.7° / 5.5 in / 140 mm
  • Dry Weight: 672 lbs / 305 kg
  • GVWR: 1,173 lbs / 533 kg
Suspension
  • Front Suspension: Inverted cartridge telescopic fork, 43 mm diameter, 5.1 in 130 mm travel
  • Rear Suspension: Single, mono-tube gas, cast aluminum with rising rate linkage, 3.9 in/100 mm travel, preload adjustable spring
Brakes
  • Front Brake: Dual 300mm floating rotor with 4-piston caliper
  • Rear Brake: 300mm floating rotor with 2-piston caliper
Wheels & Tires
  • Front Wheel: 18 x 3.5 in
  • Rear Wheel: 18 x 8.5 in
  • Front Tire: 130/70R18 Dunlop Elite 3
  • Rear Tire: 250/40R18 Dunlop Elite 3
Color Options
  • Multiple Colors: Boardwalk Blue w/ White Racing Stripes, Suede Black and White w/ Red Stripe

Specifications

Engine
Engine Type 4-stroke 50° V-Twin
Displacement 106 ci / 1,731 cc
Bore and Stroke 101 x 108 mm
Cooling Air / Oil
Compression Ratio 9.4:1
Fuel System Electronic Fuel Injection with dual 45mm throttle body
Chassis
Front Suspension Inverted cartridge telescopic fork, 43 mm diameter, 5.1 in 130 mm travel
Front Brakes Dual 300mm floating rotor with 4-piston caliper
Front Tire 130/70R18 Dunlop Elite 3
Rear Suspension Single, mono-tube gas, cast aluminum with rising rate linkage, 3.9 in/100 mm travel, preload adjustable spring
Rear Brakes 300mm floating rotor with 2-piston caliper
Rear Tire 250/40R18 Dunlop Elite 3
Dimensions
Dry Weight 672 lbs / 305 kg
Fuel Capacity 4.5 gal / 17.0 ltr
Wheelbase 65.7 in / 1, 669 mm
Seat Height 26.5 in / 673 mm
Trail 5.5 in / 140 mm
Rake 32.7°
Transmission
Transmission 6-speed overdrive constant mesh
Final Drive Carbon Fiber Reinforced Belt
General
Speedometer Yes
Tachometer Yes
Colors Boardwalk Blue w/ White Racing Stripes, Suede Black and White w/ Red Stripe

Compare Models

 Print








Year 2010
Manufacturer Victory Motorcycles
Model Hammer® S
Style Cruiser
MSRP* $18,499.00
Chassis
Front Suspension Inverted cartridge telescopic fork, 43 mm diameter, 5.1 in 130 mm travel
Front Brakes Dual 300mm floating rotor with 4-piston caliper
Front Tire 130/70R18 Dunlop Elite 3
Rear Suspension Single, mono-tube gas, cast aluminum with rising rate linkage, 3.9 in/100 mm travel, preload adjustable spring
Rear Brakes 300mm floating rotor with 2-piston caliper
Rear Tire 250/40R18 Dunlop Elite 3
Dimensions
Dry Weight 672 lbs / 305 kg
Fuel Capacity 4.5 gal / 17.0 ltr
Wheelbase 65.7 in / 1, 669 mm
MPG
Seat Height 26.5 in / 673 mm
Trail 5.5 in / 140 mm
Rake 32.7°
Engine
Engine Type 4-stroke 50° V-Twin
Displacement 106 ci / 1,731 cc
Bore and Stroke 101 x 108 mm
Cooling Air / Oil
Compression Ratio 9.4:1
Fuel System Electronic Fuel Injection with dual 45mm throttle body
Ignition
General
Speedometer Yes
Tachometer Yes
Odometer
Colors Boardwalk Blue w/ White Racing Stripes, Suede Black and White w/ Red Stripe
Warranty
Transmission
Transmission 6-speed overdrive constant mesh
Final Drive Carbon Fiber Reinforced Belt
